AUTOGLASS

2020

The project for the administrative headquarters in Vila Velha is organized in two blocks, connected through a glass volume. The latter, transparent, houses the main atrium with a ceiling height of 20 meters, with a glass roof in addition to walkways in a metal structure. Among the elements that mark the arrival at the building are the reflecting pool and the cantilever formed by the metal marquee.

The building, in its almost 20,000m² of built area, has the principle of solving a key issue: how to accommodate an extensive program, with a large part of its environments of collective and systemic use, without becoming a repetitive and monotonous environment for the user. With this issue in mind, different colors were adopted for each floor, in addition to the diversity of finishing materials and furniture.

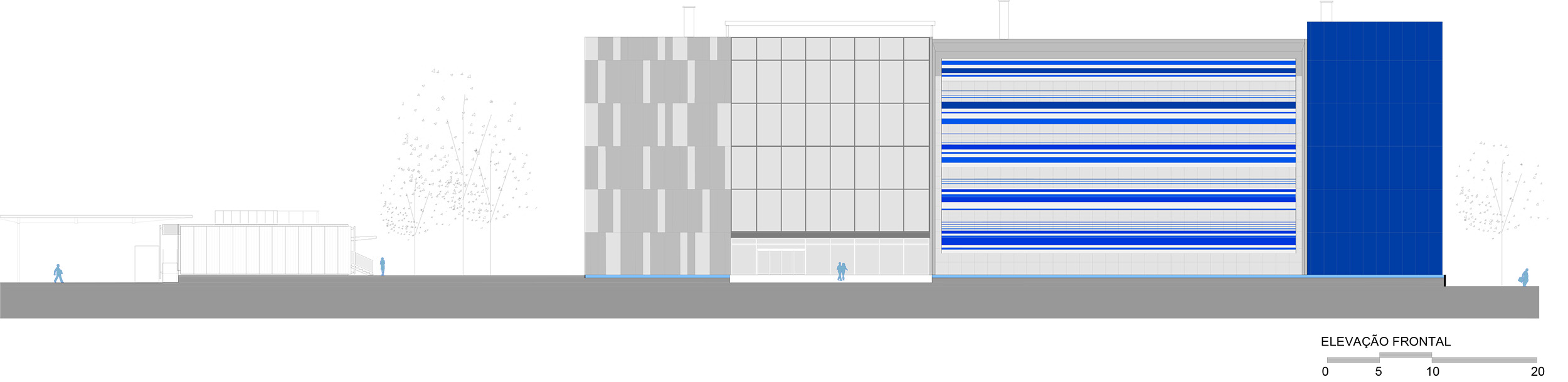

The large proportions of the building are also revealed externally, when large planes are worked on its paginations, predominantly in ACM, with colors that vary between shades of gray and white.
Just as the marquee and metal louvers ensure the control of insolation in the main atrium, the north and south facades have horizontal louvers with colors associated with the client's institutional identity.
Este empreendimento conta ainda, com um edifício de apoio, onde está concentrado o programa de descompressão para os colaboradores. Este último, está conectado ao edifício principal através de uma praça, com áreas de sombra e permanência ao ar livre.

Read more

LOCATION
Vila Velha, ES–Brasil

AREA
19.710,00m²

TEAM
Artur Katchborian, Mario Biselli, Cassia Lopes Moral, Victor Piza, Fiona Platt, Mauricio Addor, Carla Gotardello, Stephanie Luna, Anna Luisa Segete, Hugo Rossini, Caio Camillo, Luiza Franklin, Giuliano Chimentão, Lucas Ferreira dos Reis, Eduardo Amaro, Carolina Gomes, Diego Tagawa, Camila Bevilacqua, Raphael Franco, Marco Aurélio de Toledo, Julio Cesar Farias, Lorraynny Cruz

METALLIC STRUCTURE
Medabil e ML Faria

CONCRETE STRUCTURE
Vertiko Engenharia Estrutural

FOUNDATION
Geoconsult

WATERPROOFING
Impertop

ACUSTICS
Akkerman Alcoragi Acústica Ideal

ELECTRICAL AND HYDRAULIC INSTRALLATIONS
PQR MA2

AIR CONDITIONING
EPT Engineering

FRAMES
Arqmate

VISUAL COMMUNICATION
BK + Griffa

LIGHTING
Foco Luz e Desenho

LANDSCAPING
Benedito Abbud

CONSTRUCTION
Libercon Engenharia

PHOTOS
Nelson Kon
